Advanced (Correlation)

The Correlation page allows the user to correlate the duration of the tasks in selected project.  Each task can be correlated to one or more tasks.  Correlations can be done in two ways; Manual and Group correlation.



advanced_correlation

Figure 1

In Manual Correlation

2.7.1 Add Correlation:

This functionality is used to add correlations to a selected task.

Steps:

  1. Simulations —>Advanced —>Correlation —> Manual Correlation
  2. Click on the empty cell under the Task ID or Task name column. (Figure 1)
  3. A pop up appears where the task for correlation is selected. (Figure 2)
  4. Another pop up appears where correlates to the task are selected. (Figure 3)
  5. Tick the check boxes corresponding to each task to be correlated with their correlation coefficients and click SAVE. (Figure 3)



sim_advanced_corelation_task

Figure 2

sim_advanced_corelation_task_save

Figure 3

2.7.2 Delete Correlations:

This functionality is used to delete or remove correlations.

Steps:

  1. Simulations —>Advanced —>Correlation —> Manual Correlation

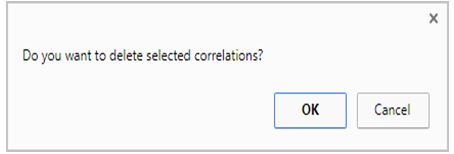

  2. Click DELETE An alert box appears.  (Figure 4)
  3. Click OK to remove or click Cancel. (Figure 4)



sim_advanced_corelation_delete

Figure 4

In Group Correlation

2.7.3 Add Group:

This functionality is used to add a group correlation by giving criteria based on which the correlations are created.





sim_advanced_group_correlation

Figure 5

Steps:

  1. Simulations —>Advanced —>Correlation —> Group Correlation
  2. Click ADD GROUP button and select field, criteria and its value, and correlation coefficient based on which the correlations are given. (Figure 5)
  3. Click SAVE (Figure 5)
  4. To edit a group, click Edit icon and then save the changes. (Figure 5)
  5. To delete a group, click Delete (Figure 5)

2.7.4 Create New Correlation Group:

This functionality is used to create a new correlation group with multiple filters.

Steps:

  1. Simulations —>Advanced —> Correlation —>Group Correlation
  2. Click CREATE NEW CORRELATION GROUP button to add correlation groups. (Figure 5)
  3. A pop up appears where the groups are created with a correlation group name and click SAVE (Figure 6)
  4. Click the ADD FILTER to add another filter in the correlation group. (Figure 6)



sim_advanced_group_correlation_create

Figure 6

The newly created correlation group is shown in the value combo and used to filter the tasks by selecting correlation group from the field dropdown with its criteria.  (Figure 7)



sim_advanced_group_correlation_created

Figure 7

2.7.5 Delete Correlation Groups:

This functionality is used to delete the existing correlation groups.

Steps:

  1. Simulations —>Advanced —>Correlation —> Group Correlation
  2. Click DELETE CORRELATION GROUPS (Figure 5)
  3. A pop up appears where the existing correlation groups are selected and click DELETE (Figure 8)



sim_advanced_group_correlation_delete_correlation_groups

Figure 8

2.7.6 Delete All Correlations:

This functionality is used to delete or remove all correlations in every groups.

Steps:

  1. Simulations —>Advanced —>Correlation —> Group Correlation
  2. Click DELETE ALL CORRELATIONS An alert box appears.  (Figure 5)
  3. Click OK to remove or click Cancel. (Figure 9)



sim_advanced_group_correlatio-delete_Correlationn

Figure 9

2.7.7 Import from xls:

This functionality is used to import the correlations from an .xls file.

Steps:

  1. Simulations —>Advanced —>Correlation —> Group Correlation
  2. Click IMPORT FROM XLS (Figure 5)
  3. Click CHOOSE FILE button to browse the file. Map the fields and click IMPORT VALUES (Figure 10)



sim_advanced_group_correlation_imported

Figure 10

2.7.8 Export to xls:

This functionality is used to export the correlations that are added in this page to an .xls file.

Steps:

  1. Simulations—>Advanced—>Correlation —> Manual Correlation/Group Correlation
  2. Click EXPORT TO XLS (Figure 1 and Figure 5)
